Ship Launching Airbag Marine Ship Launch System Equipment Vessel Launching Balloon
Description

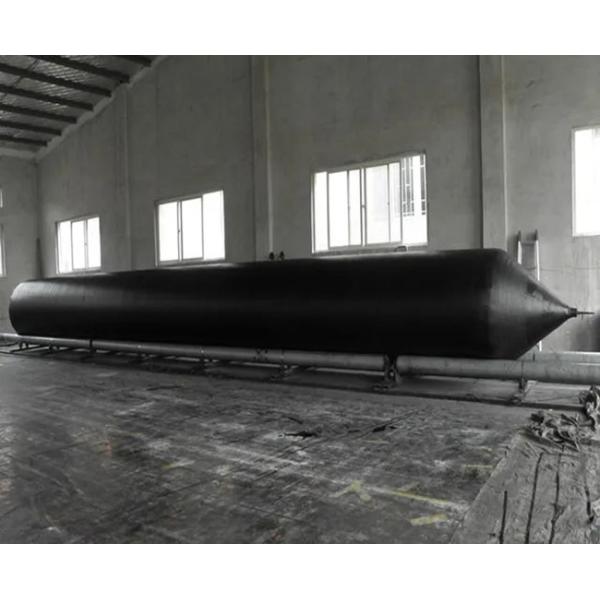

A ship launching balloon is an innovative and efficient method used in the maritime industry to launch ships into the water. With a simple and yet effective design, the ship launching balloon is essentially a large inflatable rubber structure that is placed underneath the ship to help it float and move into the water smoothly.
The ship launching balloon works by utilizing the principle of buoyancy. When inflated with air or gas, it generates enough lifting force to support the weight of the ship, allowing for a controlled and safe launch. The balloon is carefully positioned and secured under the ship's hull, and as it is inflated, it lifts the ship from its place on the slipway or dock, gradually guiding it into the water.
This method of ship launching offers numerous advantages. It is cost-effective, as it eliminates the need for expensive dry docks or specialized equipment. It also provides greater flexibility, as ships can be launched in a wide range of locations, including areas with shallow water or limited infrastructure. Additionally, the ship launching balloon reduces the risk of damage to the ship during the launching process, ensuring a smoother transition into the water.
In conclusion, the ship launching balloon is a practical and efficient solution for launching ships, offering cost savings, flexibility, and enhanced safety. Its simplicity, yet effectiveness, makes it a popular choice in the maritime industry for ship launching operations.
Specifications
| Place of Origin | China |
| Brand Name | Hongruntong Marine |
| Model Number | HM-SLB1.2*12M |
| Product Name | Boat Ship Launching Balloon, Marine Inflatable Balloons |
| Material | High-Performance Natrual Rubber |
| Warranty | 3 Years |
| Appearance | Smooth Rubber |
| Quality Certification | ISO14409:2011 |
| Standard | ABS, BV, DNV, LR, SGS |
| Shape | Cylindrical |
| Color | Black |
| Diameter | 500-4500 mm |
| Length | 3000-28000 mm |
| Thickness | 5-13 layers |
| Capacity | 20-500 tons |
| Application | Ship Launching/Docking/Lifting |
| Diameter | Working Pressure | Working Height | Bearing Capacity |
| KN/m | Ton/m |
| D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
| 0.5m | 109.96 | 11.22 |
| 0.4m | 131.95 | 13.46 |
| D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
| 0.6m | 113.10 | 11.54 |
| 0.5m | 131.95 | 13.46 |
| 0.4m | 150.80 | 15.39 |
| D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
| 0.8m | 109.96 | 11.22 |
| 0.7m | 125.66 | 12.82 |
| 0.6m | 141.37 | 14.43 |
| 0.5m | 157.08 | 16.03 |
| D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
| 1.0m | 113.10 | 11.54 |
| 0.9m | 127.33 | 12.98 |
| 0.8m | 141.37 | 14.43 |
| 0.7m | 155.51 | 15.87 |
| 0.6m | 169.65 | 17.31 |
| D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
| 1.1m | 113.10 | 11.54 |
| 1.0m | 125.66 | 12.82 |
| 0.9m | 138.23 | 14.11 |
| 0.8m | 150.80 | 15.39 |
| 0.7m | 163.36 | 16.67 |
| 0.6m | 175.93 | 17.95 |
| * Other size can be produced follow client's requirements. |
Features
High load capacity
Ship launching balloons are designed to have a high load capacity, allowing them to lift and launch large vessels. This is essential for the successful launch of ships and ensures that the balloon can handle the weight of the ship without compromising safety.
Durable construction
Ship launching balloons are typically made from strong and durable materials, such as reinforced fabric or high-strength synthetic fibers. This ensures that the balloon can withstand the stress and strain of lifting heavy loads during the ship launch process.
Inflation system
Ship launching balloons are equipped with an inflation system that allows for easy and controlled inflation of the balloon. This system typically includes a gas supply and valve mechanism to regulate the gas flow into the balloon and ensure proper inflation.
Safety features
Ship launching balloons are designed with safety in mind. They often include features such as multiple attachment points for securing the ship, safety valves to prevent over-inflation, and reinforcement in critical areas to enhance structural integrity. Additionally, these balloons are often tested and certified to meet strict safety standards to ensure the protection of personnel and equipment during ship launching operations.
Applications
● Remote areas without proper infrastructure
● Shallow waters
● Low tide or unfavorable weather conditions
● Temporary or emergency purposes
● Military operations or naval exercises
● Testing and trials before final delivery
● Shipbuilding and repair yards
● Offshore drilling and oil exploration projects
● Cruise ships and luxury vessels
● Cargo ships and freighters
Advantages
Advanced Technology
Our factory is equipped with state-of-the-art machinery and equipment, enabling us to utilize advanced technology in the production of ship launching balloons. This allows us to ensure the highest level of quality and performance in our products.
Expertise and Experience
With years of experience in the industry, our team of experts has developed a deep understanding of ship launching balloon production. We have a proven track record of delivering reliable and efficient solutions to our clients.
Customization Options
We understand that each ship launching project has unique requirements. Therefore, we offer a wide range of customization options, including size, shape, and lifting capacity, to meet the specific needs of our customers.
Quality Assurance
We prioritize quality in every aspect of our production process. From sourcing high-quality materials to conducting rigorous testing, we ensure that our ship launching balloons meet the highest industry standards and provide reliable performance.
Product Tags:
|
|
